Spectral and Characteristic Data
This page shows emission spectra and main characteristics (emission peak, decay time, decay length, etc.) of scintillation fiber/wavelength conversion fiber. Please use this information as a reference when comparing grades and evaluating options.
Scintillating Fiber
This basic type emits light when exposed to radiation and is used for detection. Luminescence peak/attenuation time/attenuation length can be compared.
| Description | Emission | Decay time NS21 | Att.Leng. [m] | Light yield [photon/MeV] | Characteristics | |
|---|---|---|---|---|---|---|
| Color | Peak [nm] | |||||
| SCSF-78 | blue | 450 | 2.8 | >4.0 | ≳14,000 | Long Att. Length and High Light Yield |
| SCSF-81 | blue | 437 | 2.4 | >3.5 | ≳11,000 | Long Att. Length |
| SCSF-3HF (1500) | green | 530 | 7 | >4.5 | ≳8,000 | 3HF formulation for Radiation Hardness |
The data shown are representative values for comparative study. Values may vary depending on measurement conditions. Not a guaranteed value.
*Presented data: 1 mmφ, multi-clad, Non-S type measured values
Emission Spectrum
Data shown are representative values. Values may vary depending on measurement conditions. These are not guaranteed values for product specifications.

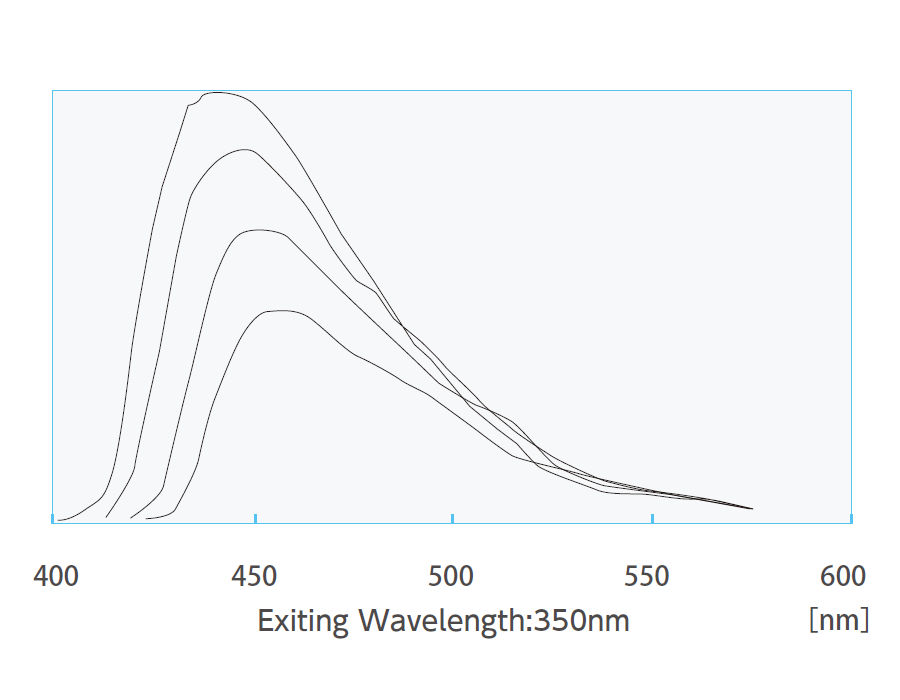

＜SCSF-78＞

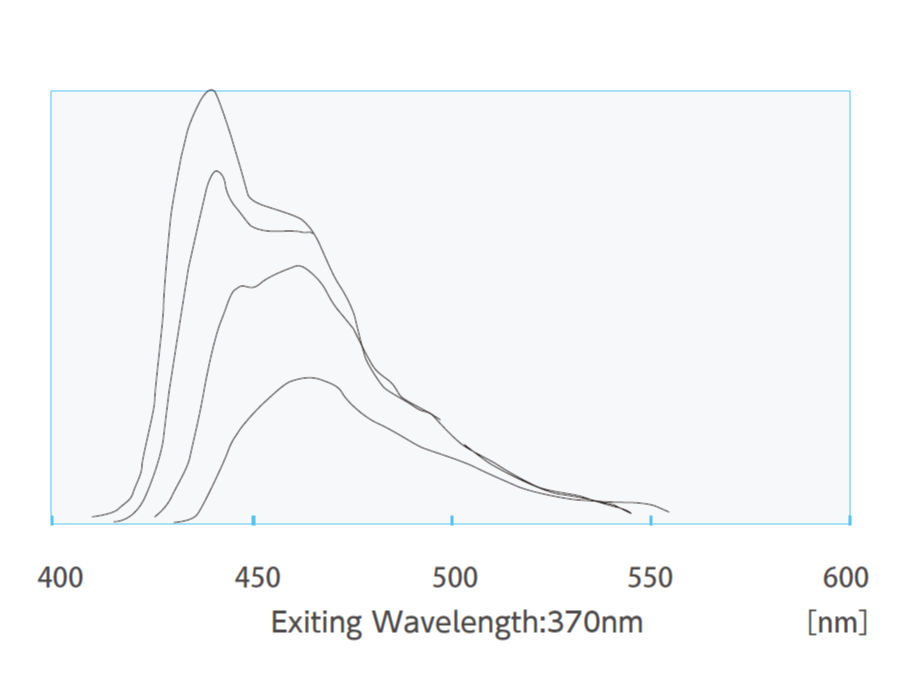

＜SCSF-81＞

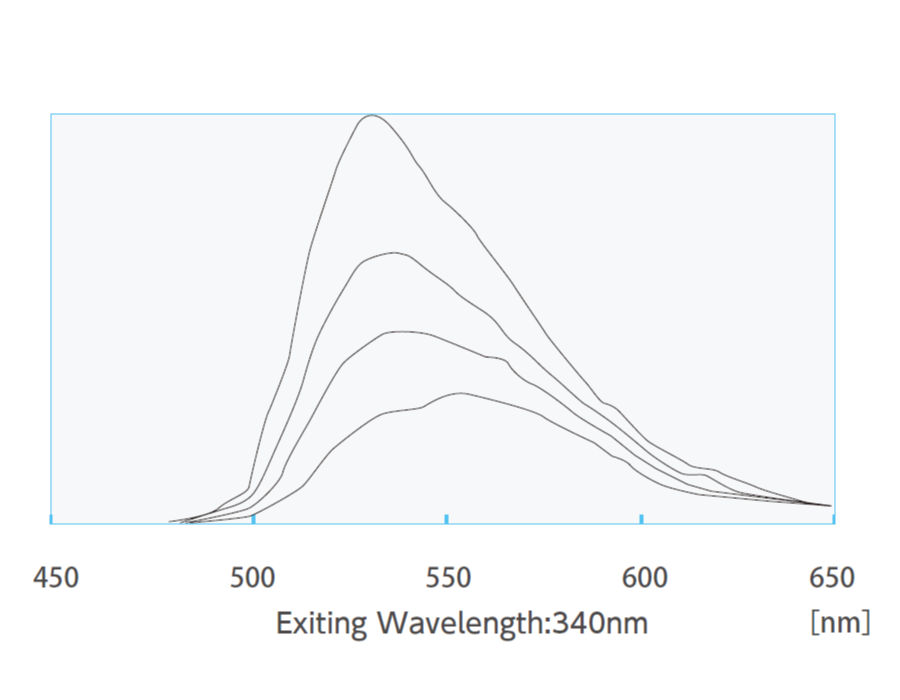

＜SCSF-3HF (1500)＞
＜R-3(100)＞

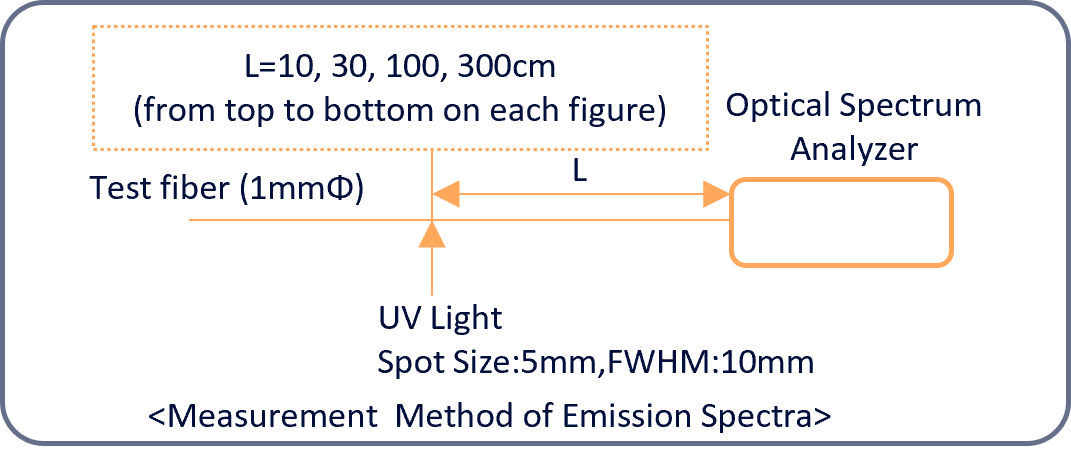

Attenuation Length Measurement Method
Attenuation lengths are regularly measured for all produced products using 3 m fiber samples.

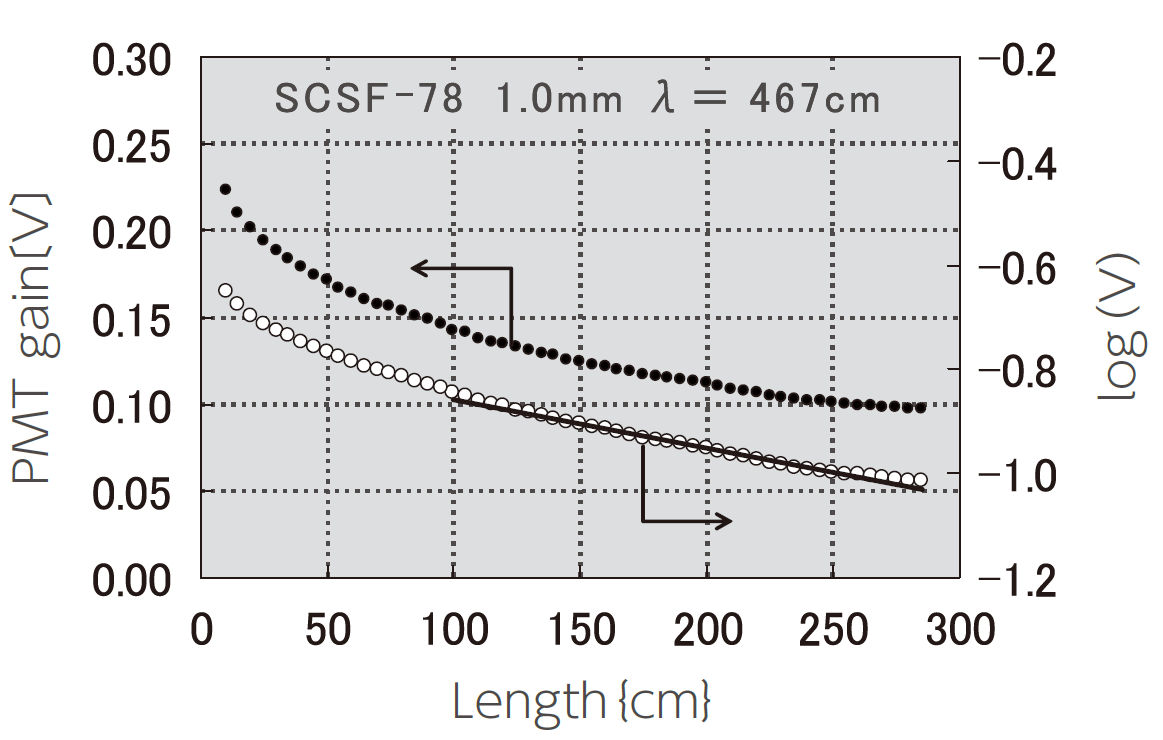

The decay curves in the figure (for example) are approximated by the single exponential formula I(x) = I₀ exp(-x/λ) except at very short distances. The attenuation length λ is calculated using data between x = 100 cm and x = 300 cm.
Wavelength Converting Fiber
This type converts the emission wavelength to increase light-receiving efficiency. Absorption and emission peaks and attenuation lengths can be compared.
| Description | Emission | Absorption Peak [nm] | Att.Leng. [m]. | Characteristics | |
| Color | Peak [nm] | ||||
| B-2 (200) | blue | 473 | 375 | >3.5 | UV to Blue Shifter |
| B-3 (200) | blue | 450 | 351 | >4.0 | |
| Y-8 (100) | green | 511 | 455 | >3.0 | Blue to Green Shifter |
| Y-11 (200) | green | 476 | 430 | >3.5 | |
| O-2 (100) | orange | 550 | 535 | >1.5 | Green to Orange Shifter |
| R-3 (100) | red | 610 | 577 | >2.0 | Green to Red Shifter |
| YS-1 | green | 454 | 395 | >3.5 | |
| YS-2 | green | 474 | 422 | >3.5 | |
| YS-4 | green | 470 | 420 | >3.0 | |
| YS-6 | green | 462 | 414 | >3.0 | |

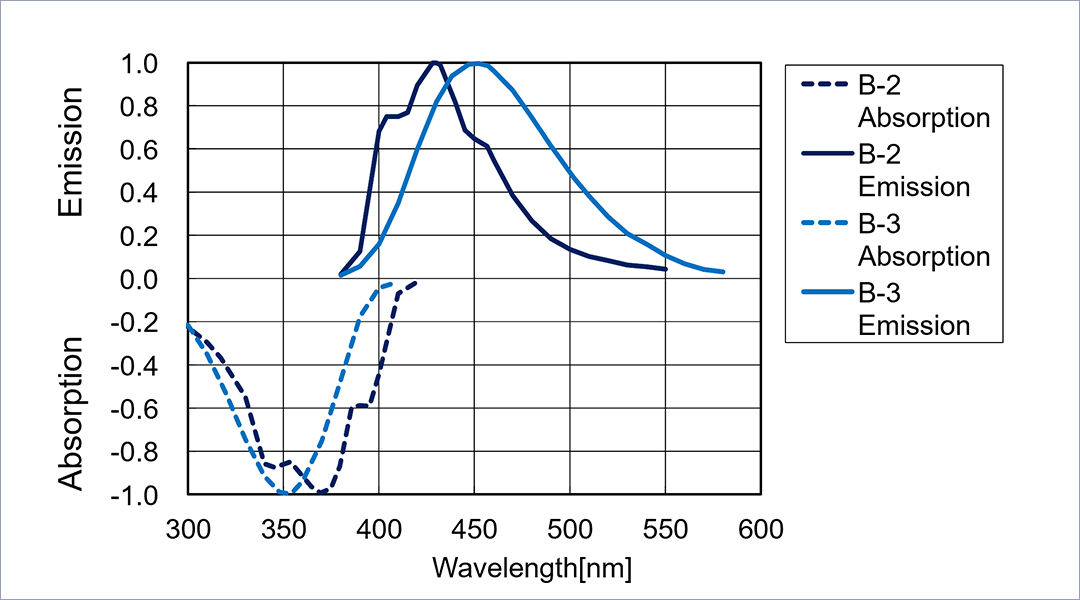

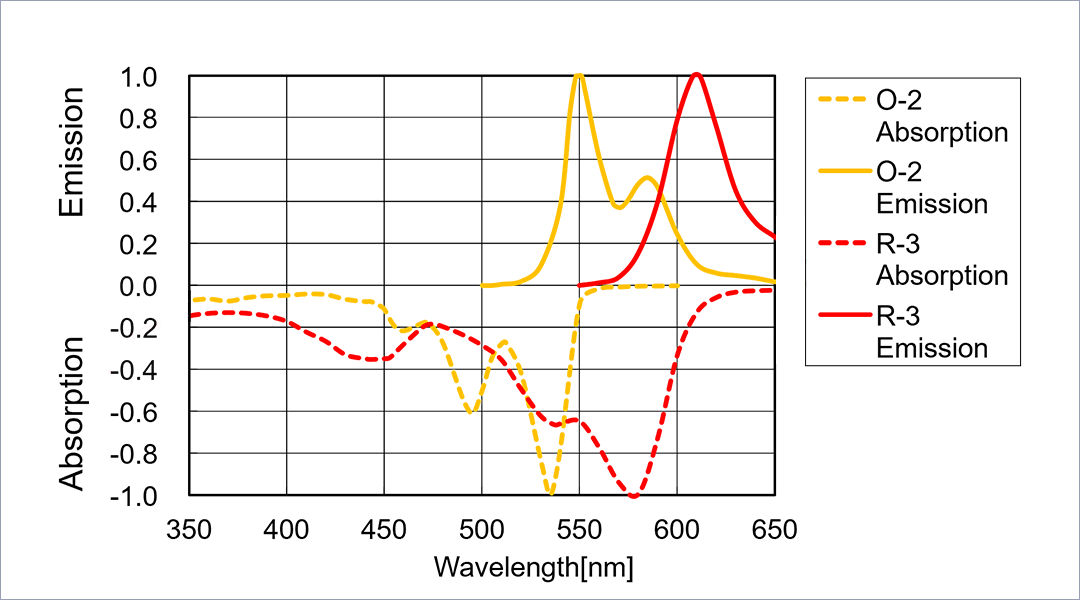

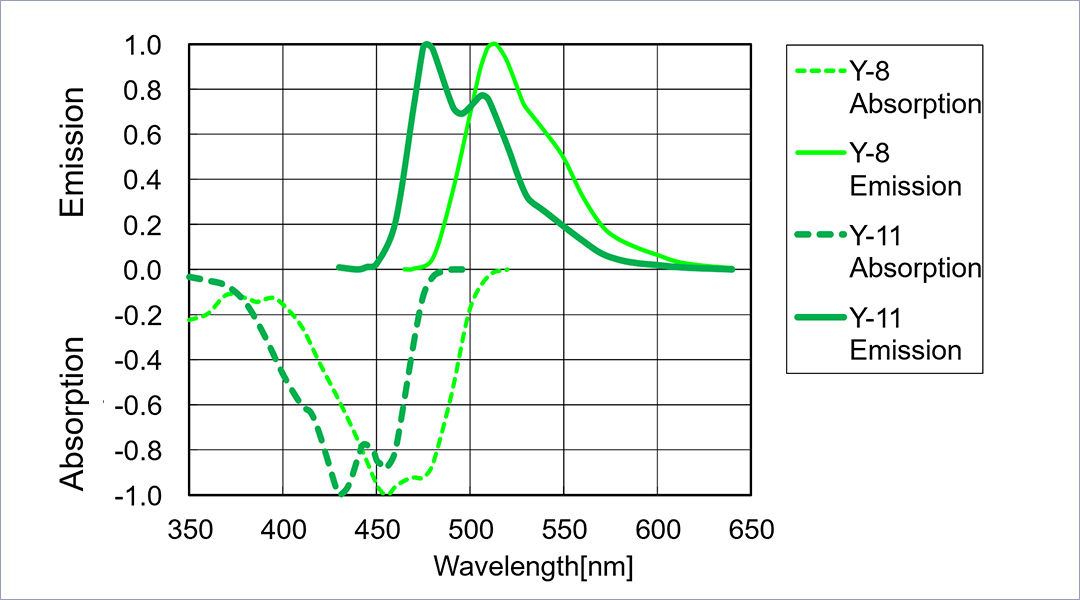

Absorption and Emission Spectra (fluorescence)
Data shown are representative values. Values may vary depending on measurement conditions. These are not guaranteed values for product specifications.
Emission Spectrum

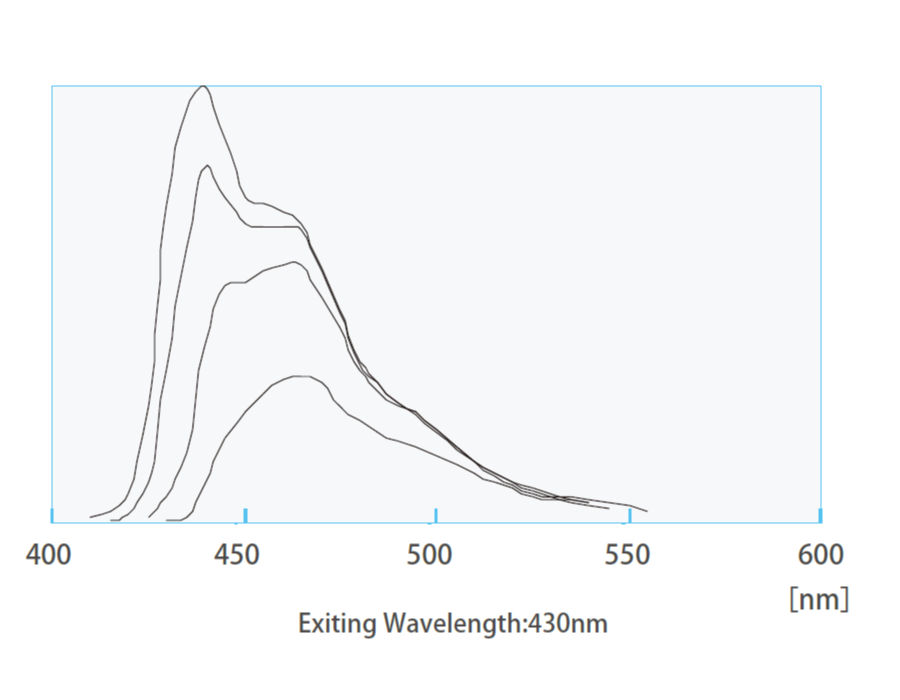

B-2 (200)

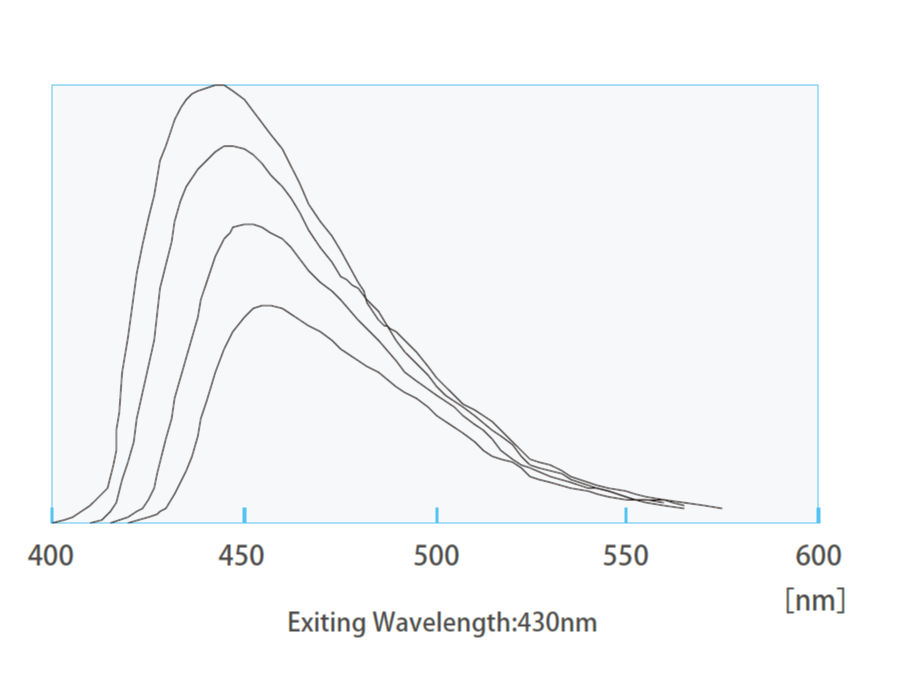

B-3 (200)

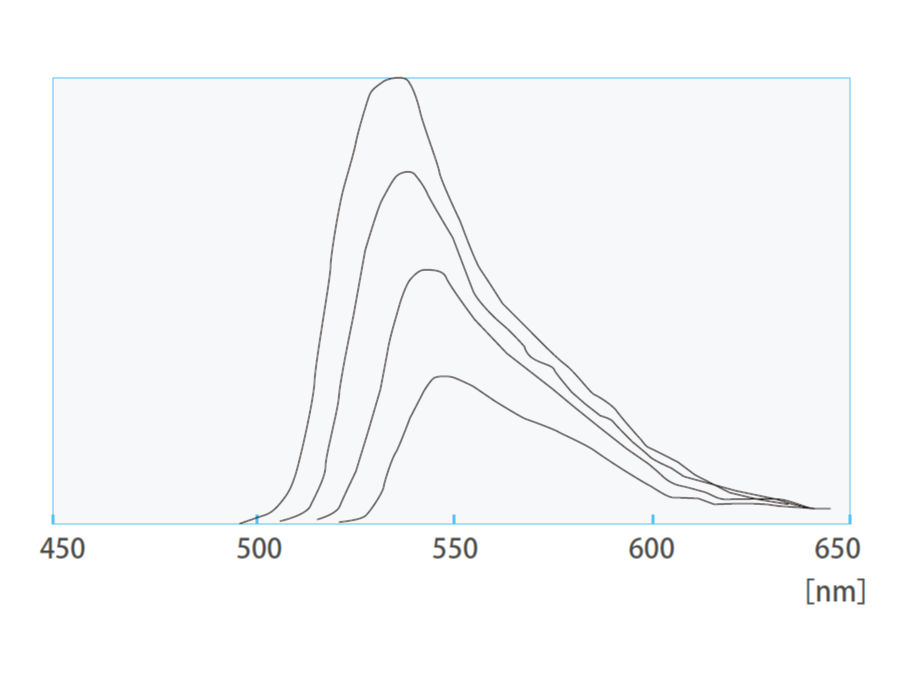

Y-8 (150)

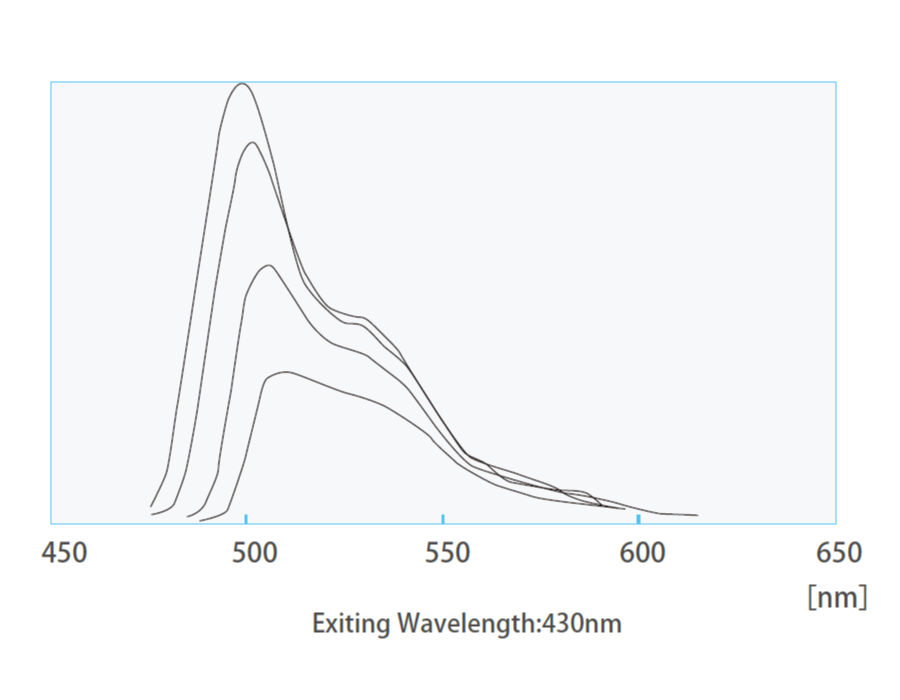

Y-11 (200)

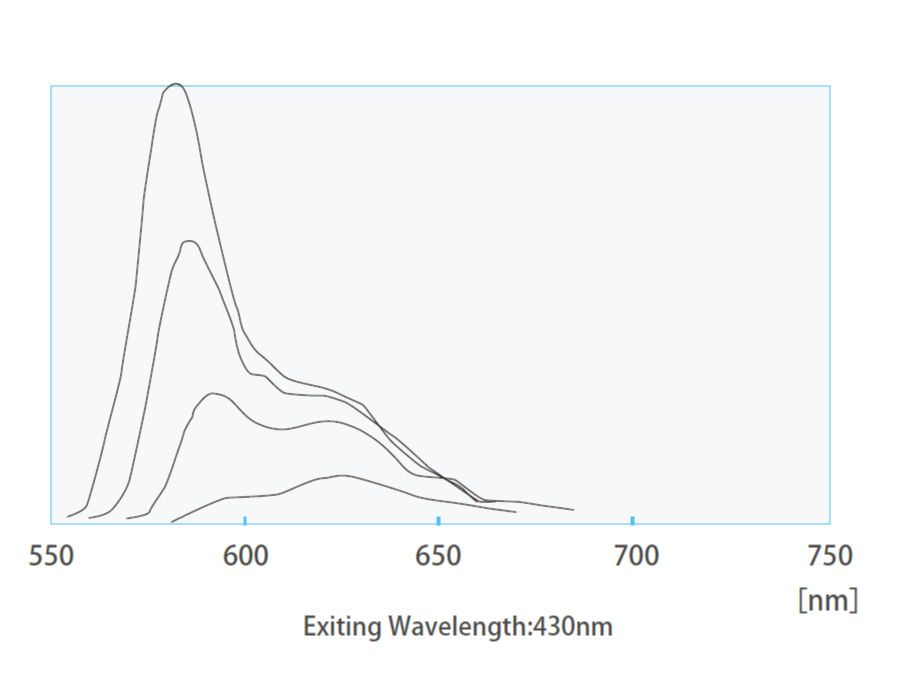

O-2 (100)

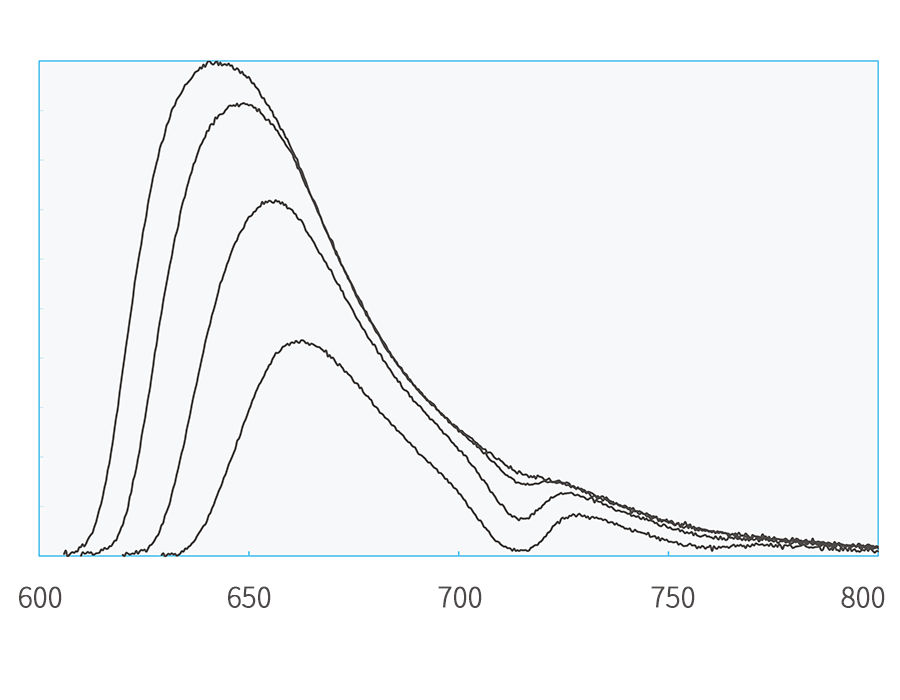

＜R-3(100)＞

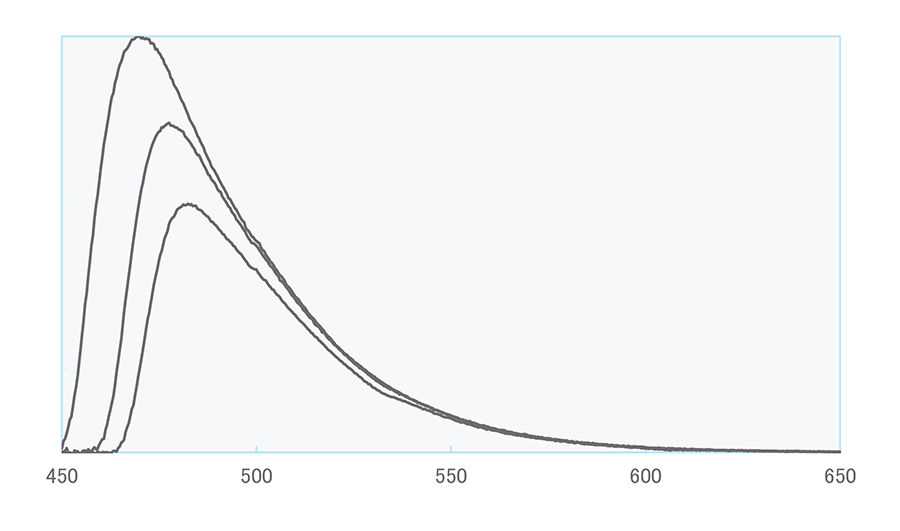

＜YS-1＞

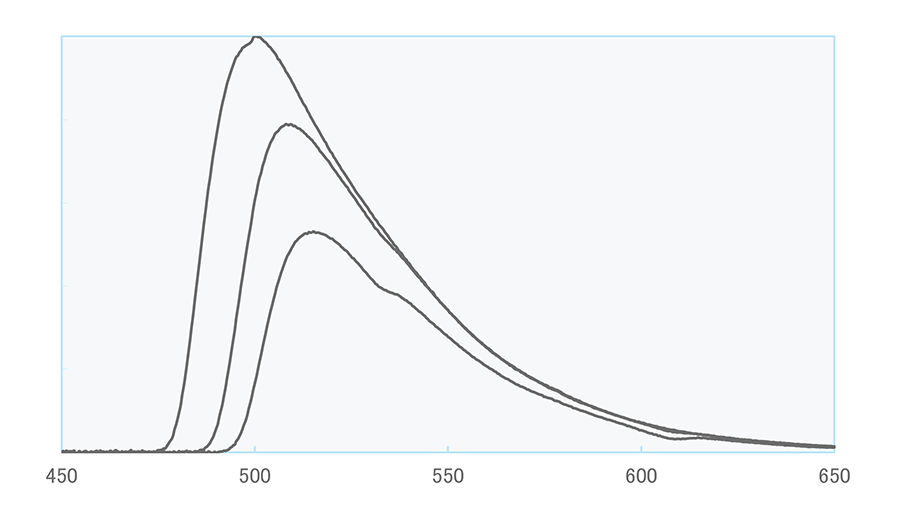

＜YS-2＞

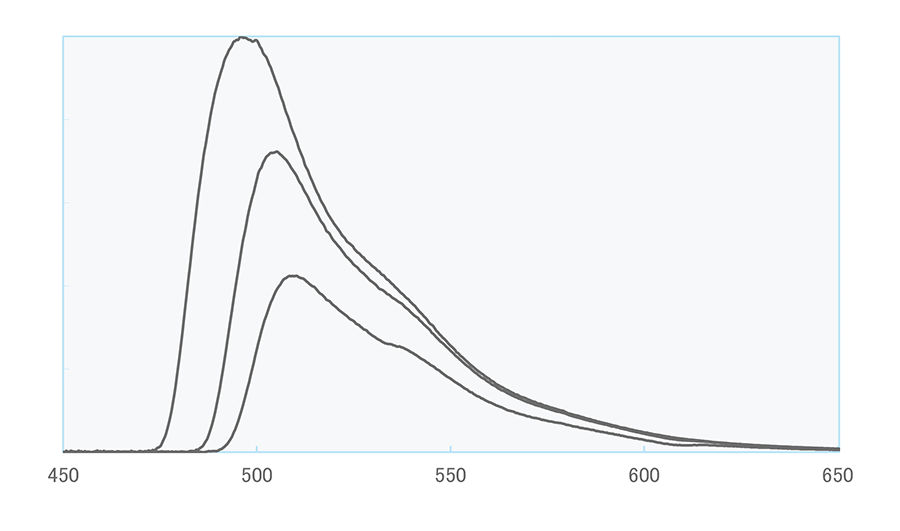

＜YS-4＞

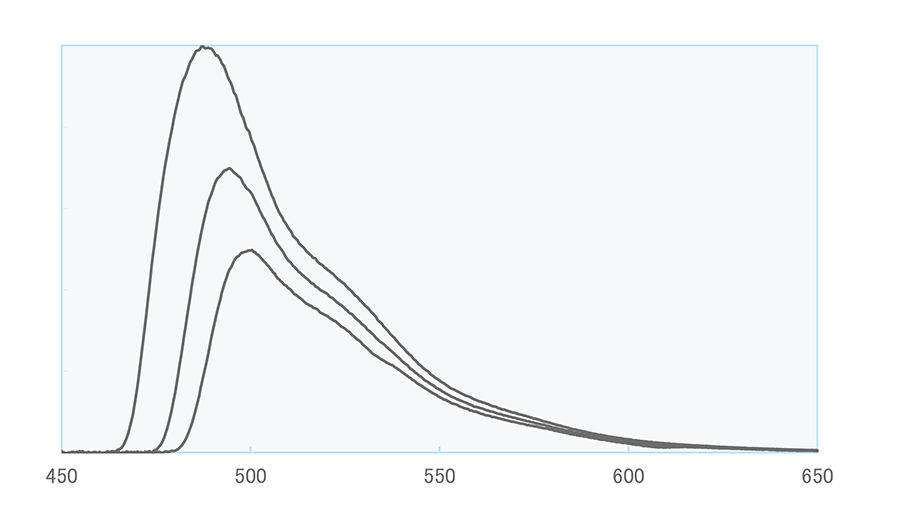

＜YS-6＞
Attenuation Length Measurement Method
Attenuation lengths are regularly measured for all produced products using 3 m fiber samples.
The decay curves in the figure (example) are approximated by the single exponential formula I(x) = I₀ exp(-x/λ) except at very short distances. The attenuation length λ is calculated using data between x = 100 cm and x = 300 cm.
Technical Data (transmission loss)
Scintillating Fiber

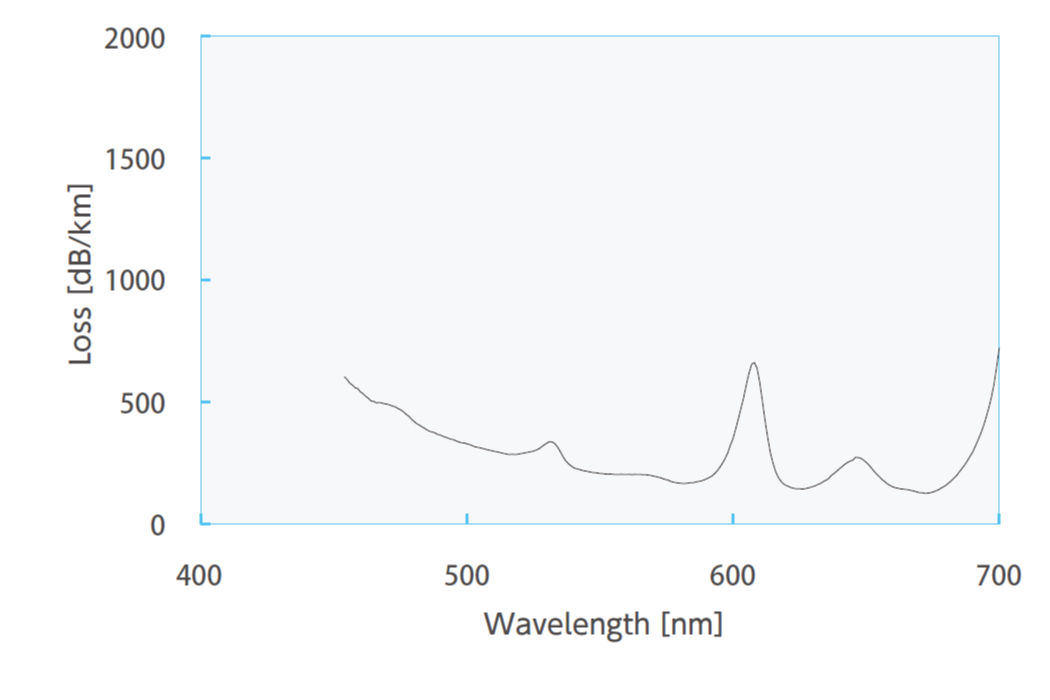

SCSF-78

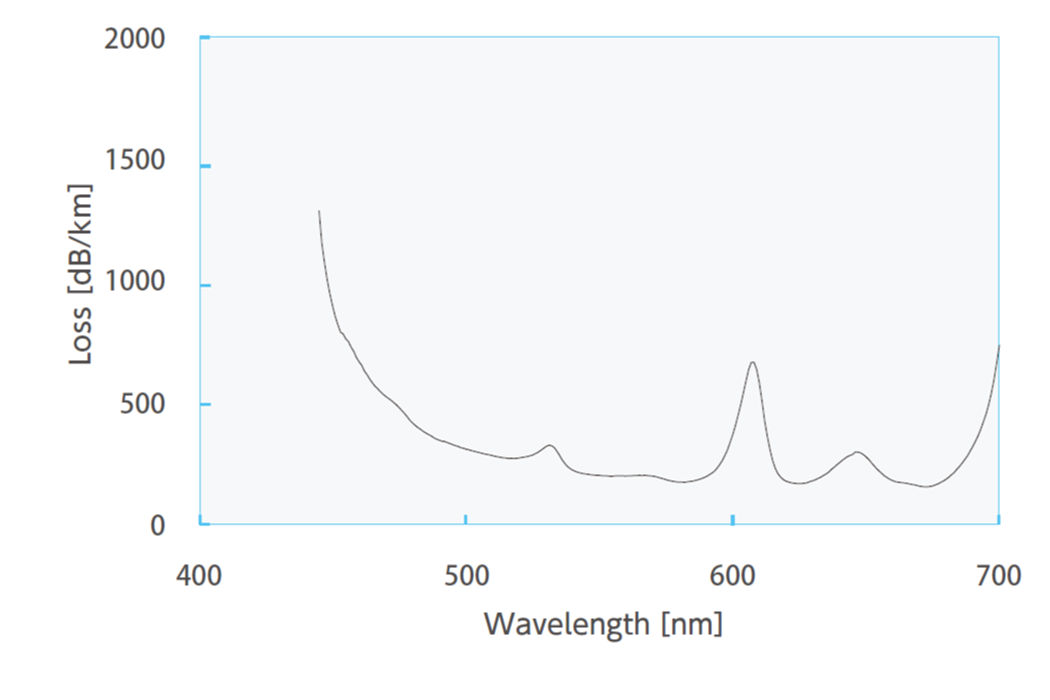

SCSF-81

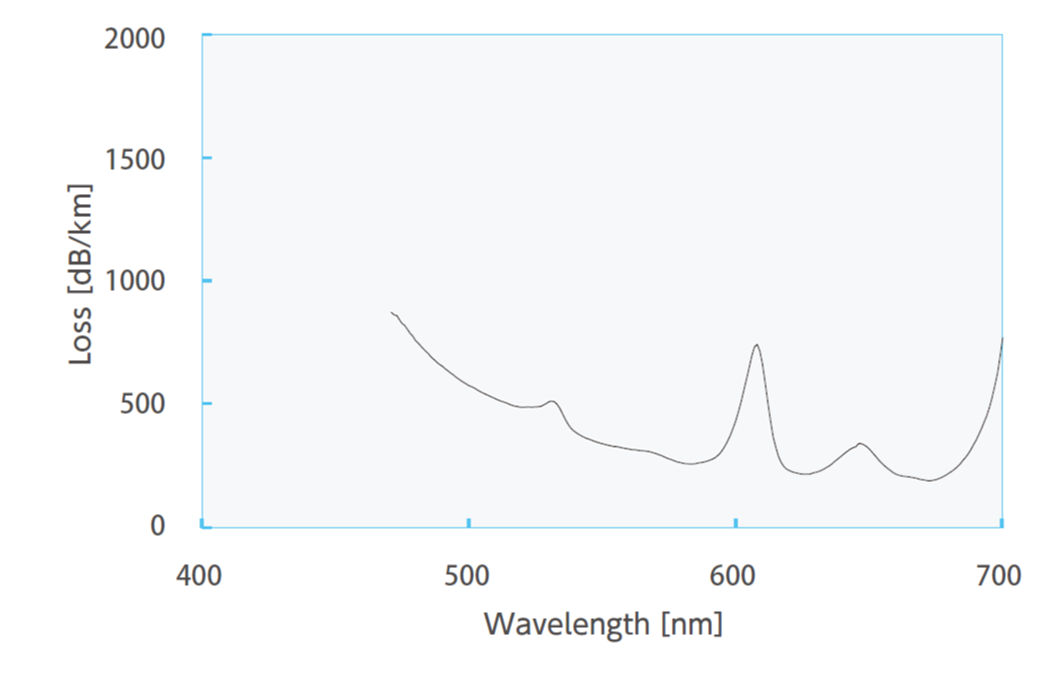

SCSF-3HF (1500)
Wavelength Converting Fiber

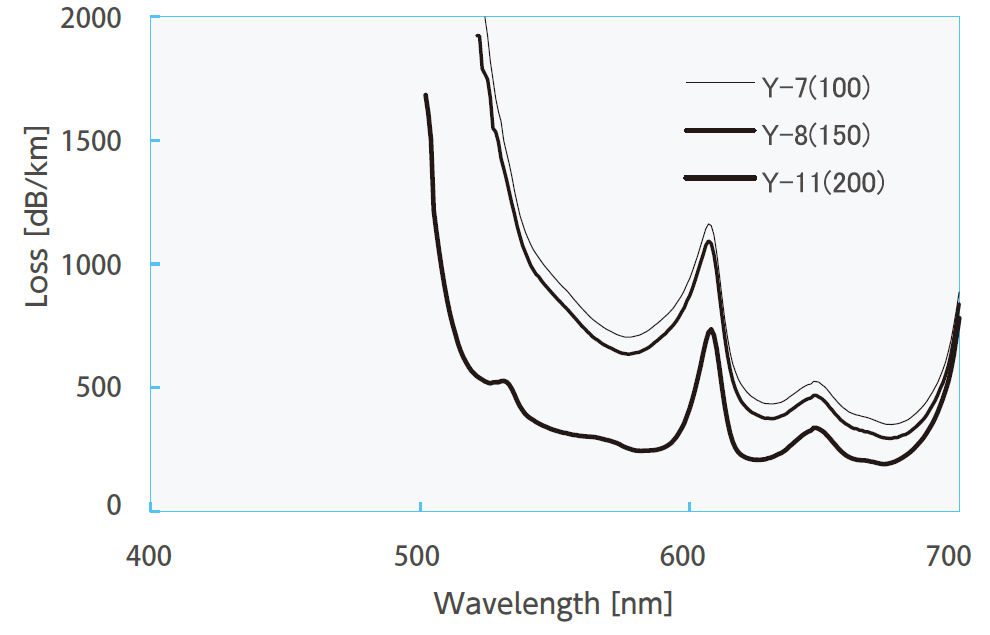

Y-7, Y-8, Y-11

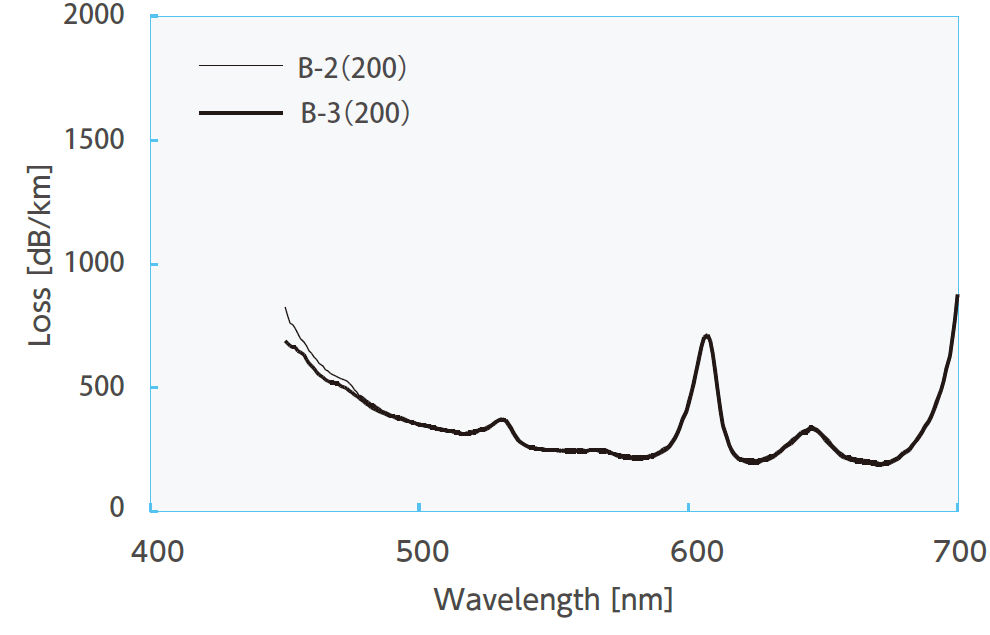

B-2, B-3

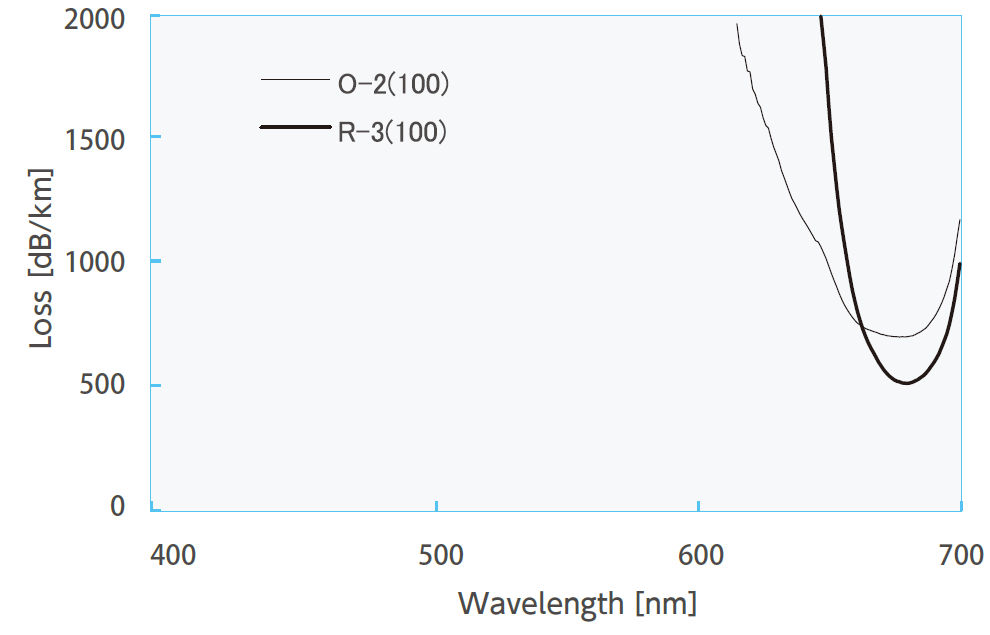

O-2, R-3

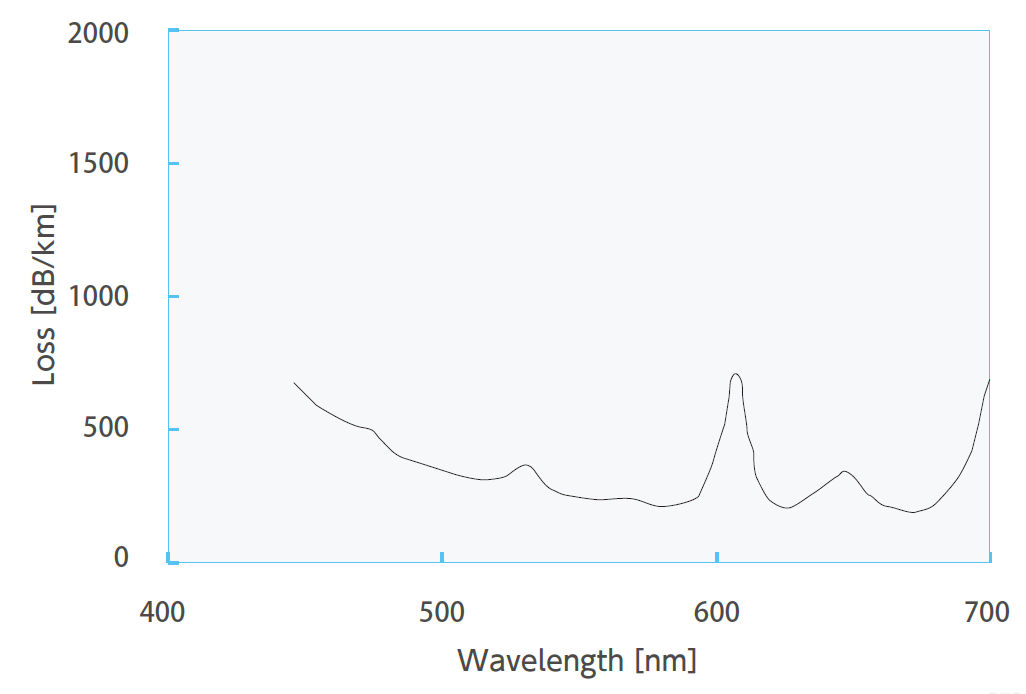

Clear Fiber
