KYOWAGLAS-XA™ Lead Acrylic Resin Sheet

Shielding, visibility, and processability. A radiation shielding material you can see through and rely on.

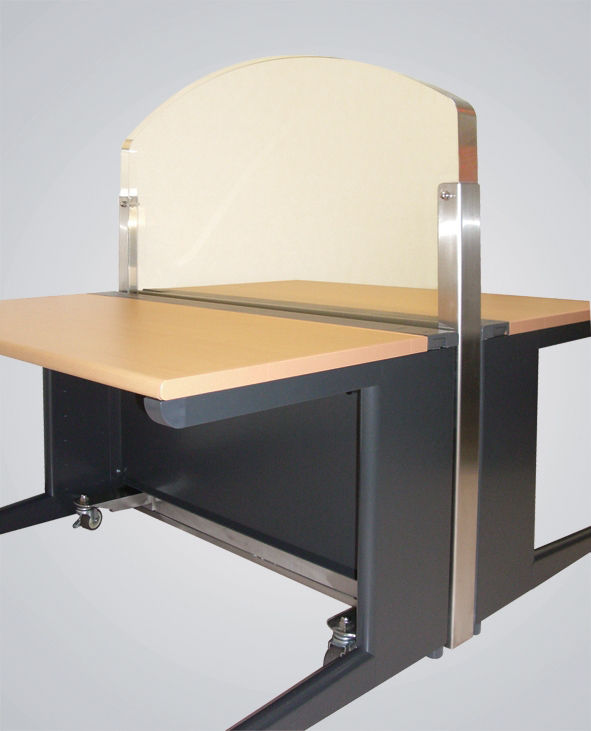

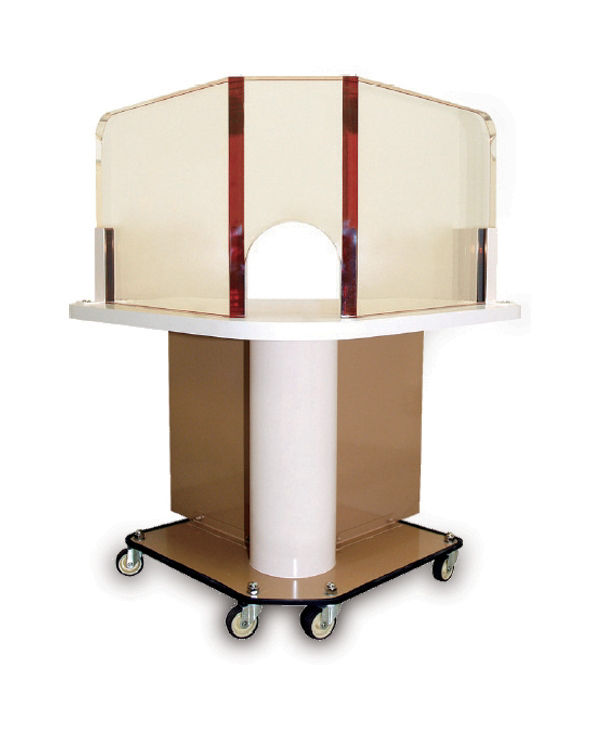

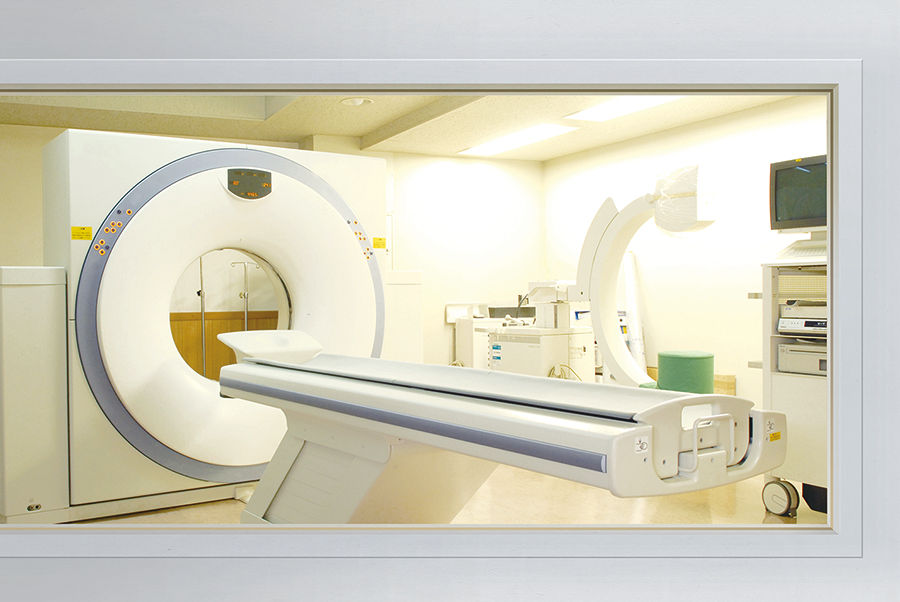

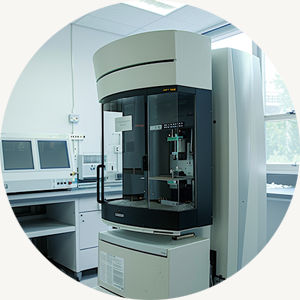

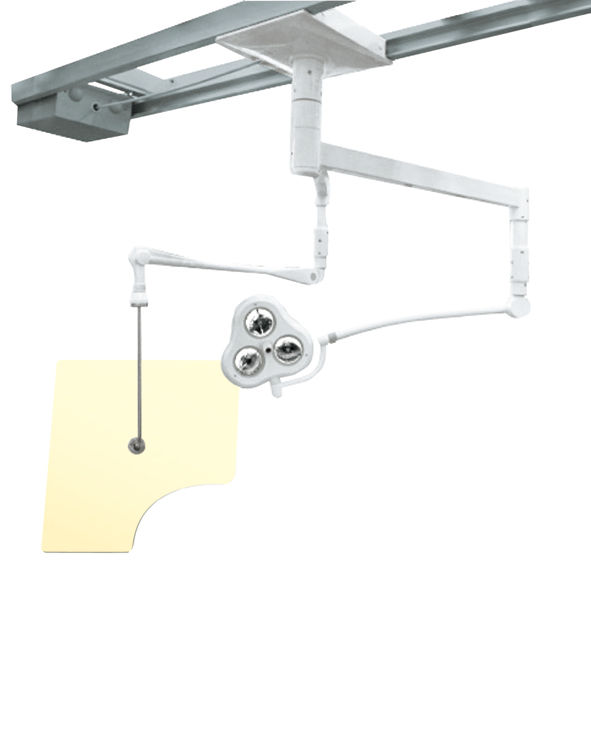

A transparent Acrylic resin sheet (PMMA) chemically bonded with a lead compound, which Kuraray developed with its proprietary technology for the first time in the world. Combining high radiation shielding performance with excellent processability and ease of handling, it is used in a wide range of fields, including the medical field, nuclear power industry, and scientific instruments.

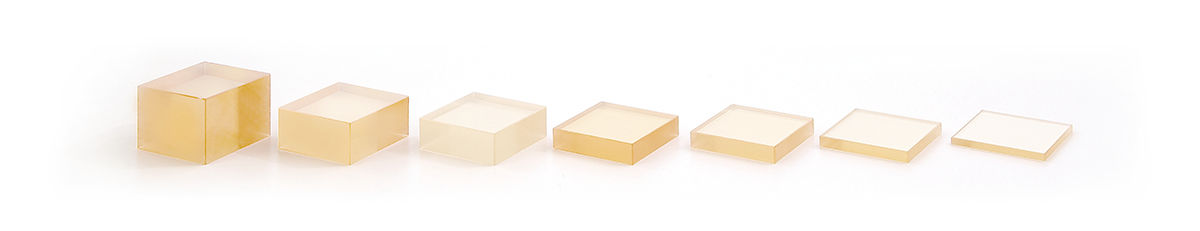

Photo: KYOWAGLAS-XA™ lead acrylic resin sheet

Functions & Features

Wide variety of brands

Processability

Transparency

Impact resistance

Wide Variety of Brands

KYOWAGLAS-XA™ is available in a wide variety of grades, so you can select the lead equivalent amount that best suits your application.

Processability

KYOWAGLAS-XA™ can be machined (cutting, drilling, etc.), bent, and bonded.

Basic Performance

Grade	Lead-equivalency (mmPb*)	Light transmission (%)	Thickness (mm)	Maximum sizes (mm)
H-8	0.3 or over	80 or over	8.5 ± 0.7	1830 × 2440
H-12	0.5 or over	75 or over	12.0 ± 1.0	1830 × 2440
H-18	0.8 or over	70 or over	18.5 ± 1.2	1830 × 2440
H-22	1.0 or over	65 or over	23.5 ± 1.5	1830 × 2440
H-35	1.5 or over	75 or over	35.0 ± 2.0	1830 × 2440
H-46	2.0 or over	70 or over	46.5 ± 2.5	1830 × 2440
H-70	3.0 or over	65 or over	70.0 ± 3.0	1220 × 2440

Please consult us if you require lead equivalent of 0.3 mmPb or less.
We will cut the product to the desired dimensions (actual dimensions used) and ship it.
Butt-jointed and polymerized gluing can also be used to produce sheets larger than the maximum dimensions listed above.

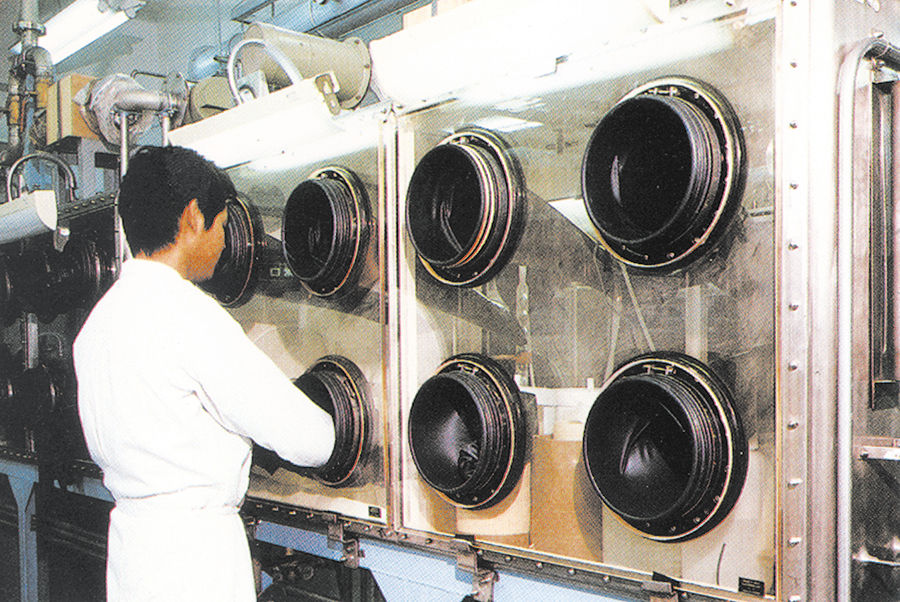

Upon request, we can machine disks, glove holes, and other shapes, as well as grind, bend, and glue edges.
*X-ray tube voltage 50 to 250 kV

Note: The property values shown are typical values and are not guaranteed.
