Technical Information & Molding Conditions

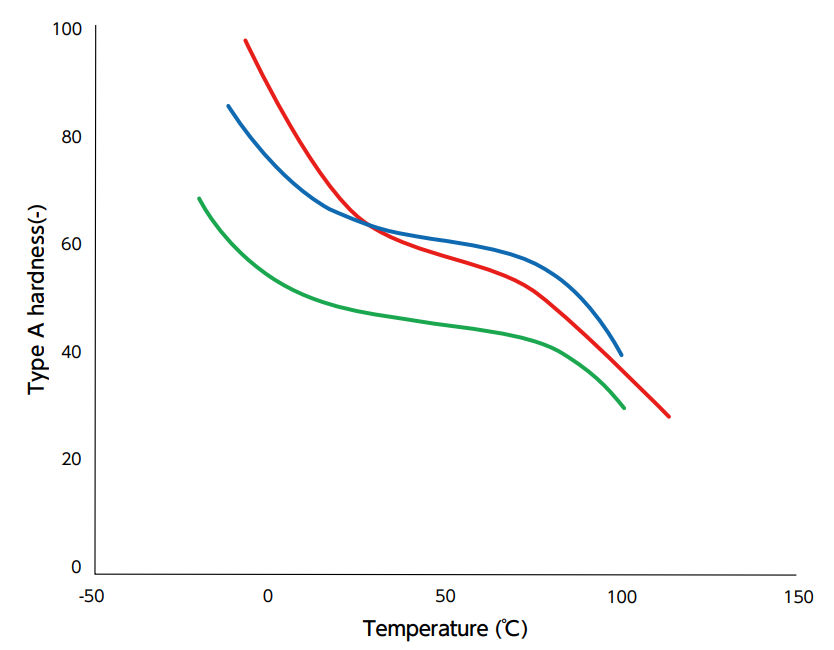

Temperature Dependence
SA grade maintains stable hardness from room temperature to around 80°C. It also has relatively good heat resistance for a soft resin.

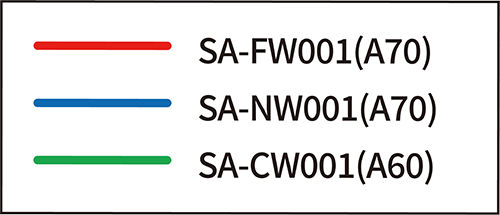

Shore A Hardness

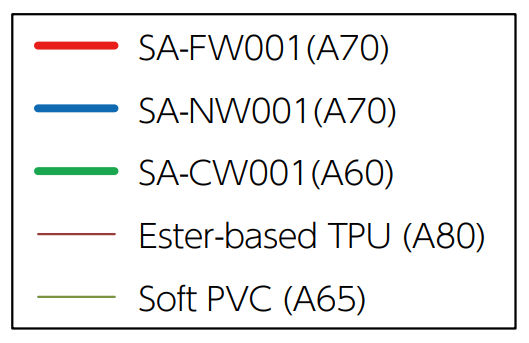

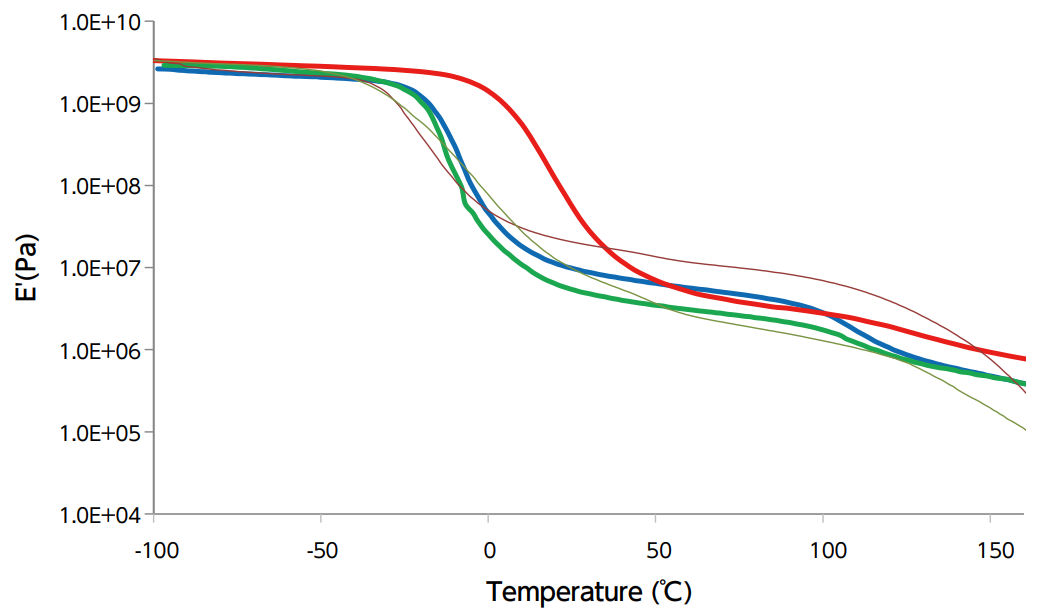

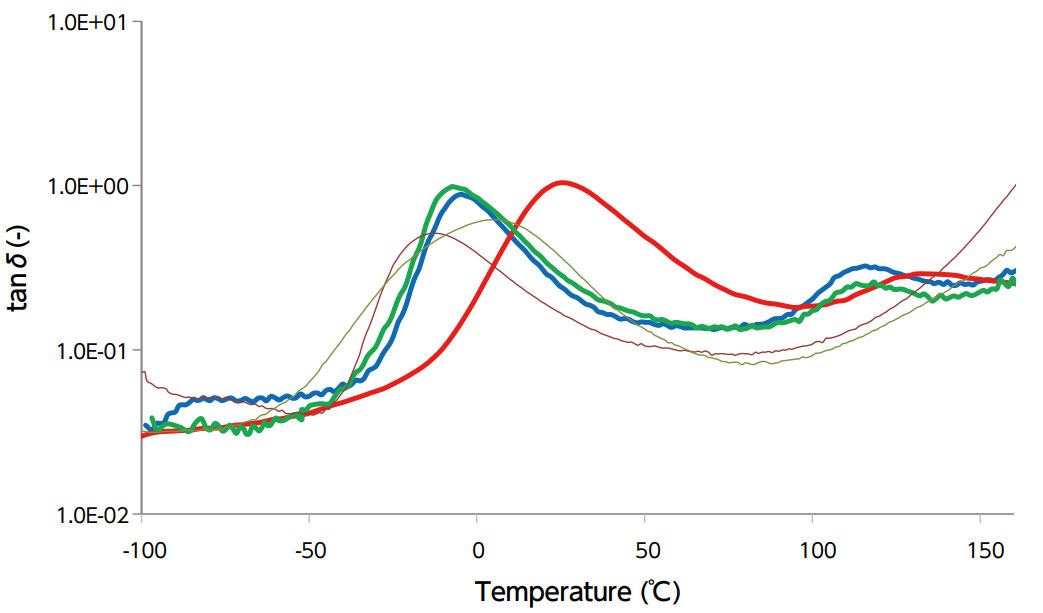

Dynamic Viscoelasticity Data
Measuring method: Tensile mode, sine wave, frequency 11.0 Hz, temperature rise method (temperature rise rate 3°C/min)
Test piece: Pressed piece

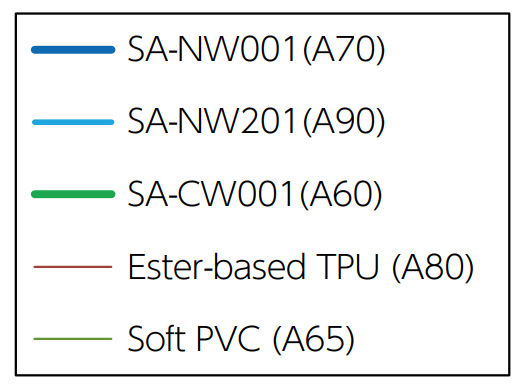

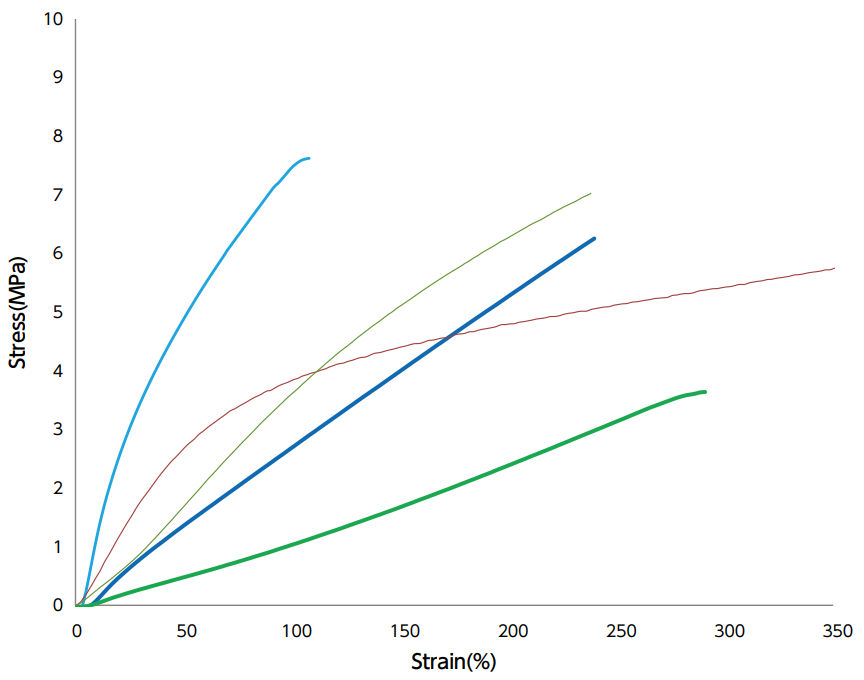

Stress-Strain Curve
Specimen: 3mmt (press-formed)
Test speed: 500mm/min

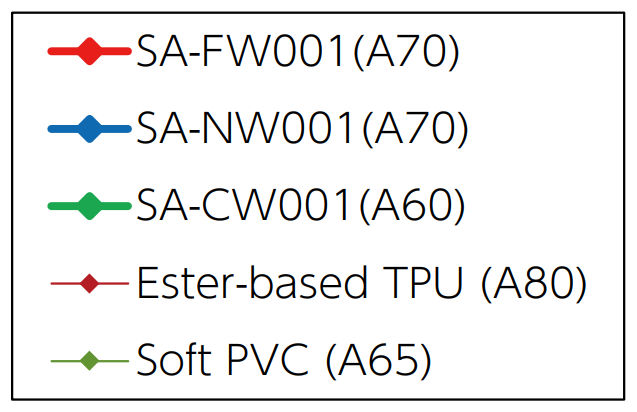

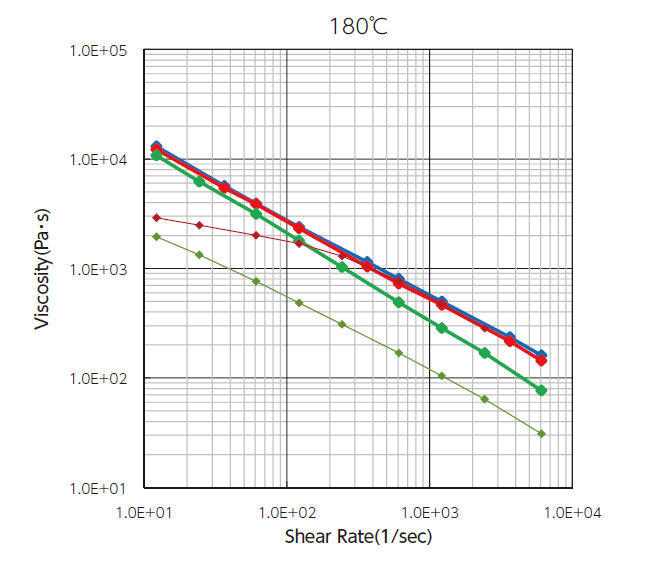

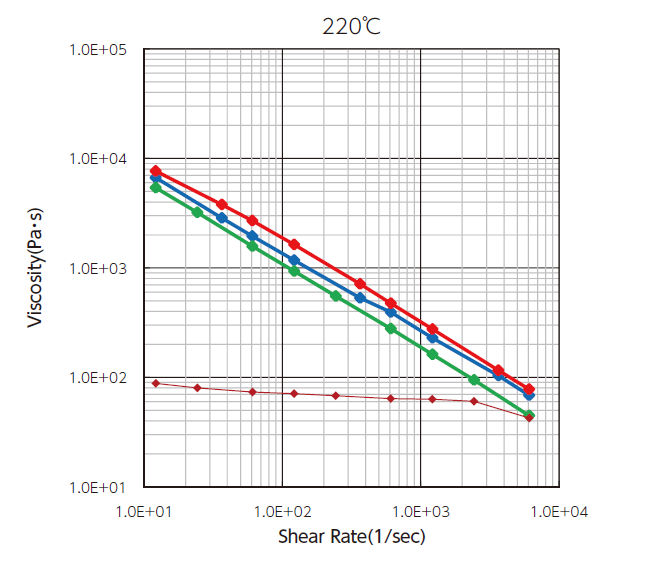

Capillary Flow Data
Soft material that maintains high viscosity even in a high temperature range, enabling good profile extrudability and complex cross-sectional shapes.
Please Contact Us if you need temperature-specific data for each brand.
*No data for soft PVC (A65) at 220°C because it cannot be measured.

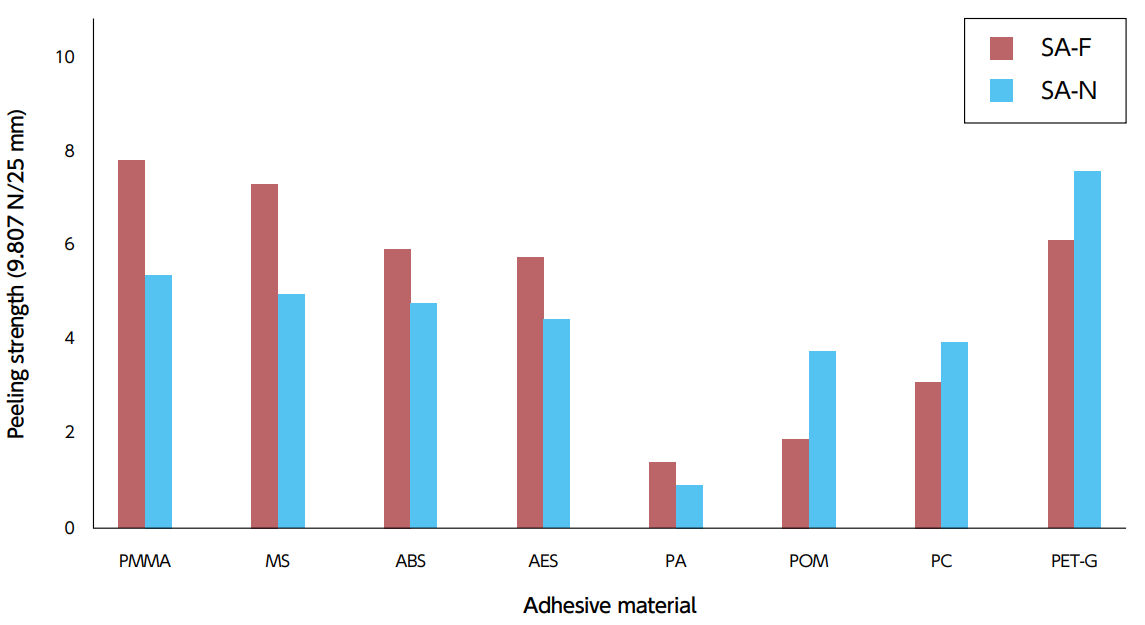

Compatibility with Other Resins (Two-Color Moldability)
SA grades have high affinity for a variety of polar resins and good thermal adhesion.
Therefore, composites with multiple resins by two-color molding, insert molding, co-extrusion molding, etc. are possible.
Weatherability

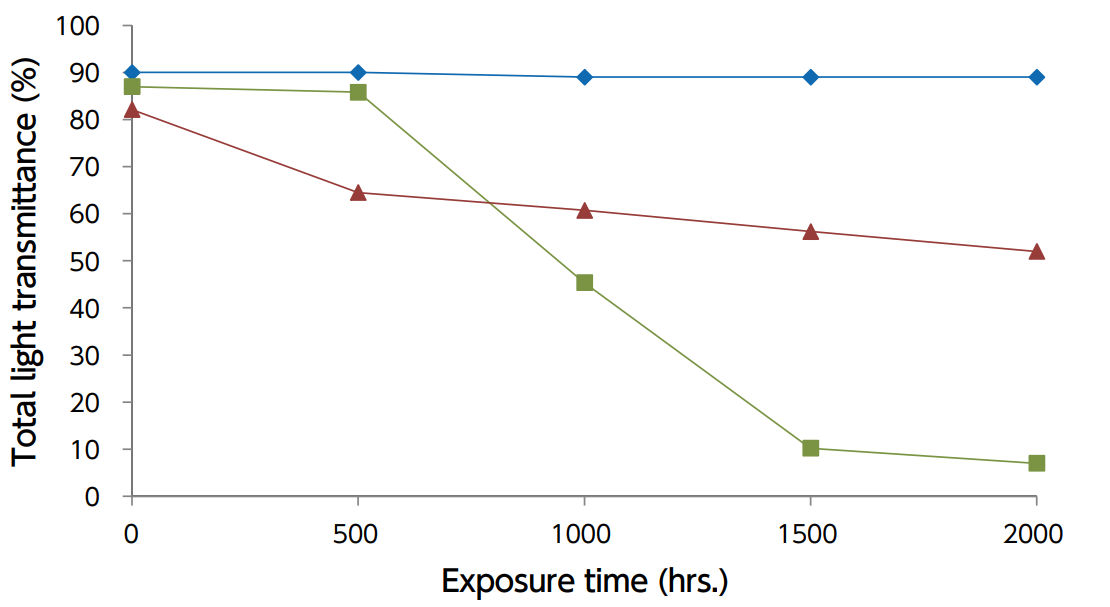

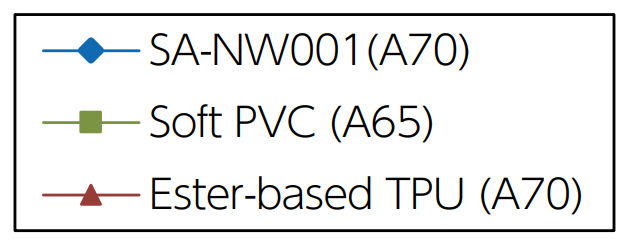

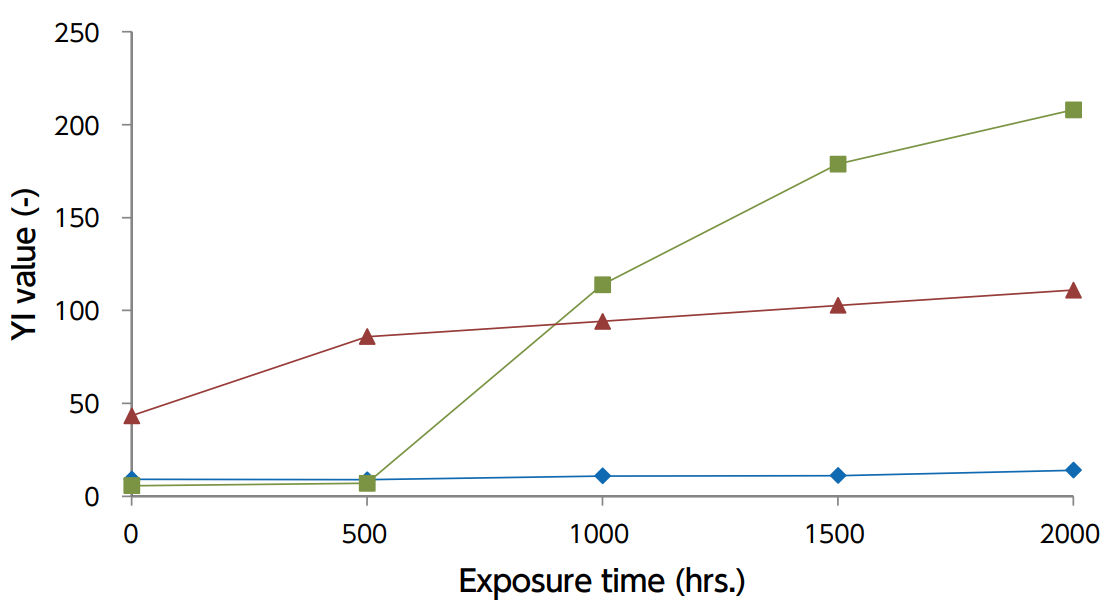

(1) Optical Property Transition
Measuring method: JIS B7753 (Sunshine carbon-arc lamp type light resistance tester and Weatherability tester)
Irradiation intensity: 255±10% W/m2 at 480mm
Black panel temperature: 63°C
Relative humidity: 50%R.H.
Cycle conditions: 120 min cycle (irradiation + water spray: 18 min, irradiation: 102 min)
Specimen: Press sheet (3mmt)
| 0 hr | 1000 hr | 1500 hr | 2000 hr | |
|---|---|---|---|---|
| SA-NW001 |  |  |  |  |
| Soft PVC |  |  |  |  |
| Ester TPU |  |  |  |  |
(2) Transition of mechanical properties
| Grade | Test Item | Unit | Exposure time [hr] | |||||
|---|---|---|---|---|---|---|---|---|
| 0 | 500 | 1000 | 1500 | 2000 | ||||
| SA-NW001 | OO Hardness | ISO 48 | - | A70 | A71 | A72 | A76 | A76 |
| Tensile Strength | ISO 37 | MPa | 12 | 11 | 10 | 10 | 10 | |
| Elongation at break | ISO 37 | % | 200 | 160 | 130 | 110 | 110 | |
| Tensile stress M100 | ISO 37 | MPa | 7 | 7 | 7 | 8 | 8 | |
| SA-CW001 | OO Hardness | - | A60 | A61 | A62 | A63 | A63 | |
| Tensile Strength | ISO 37 | MPa | 9 | 9 | 9 | 10 | 10 | |
| Elongation at break | ISO 37 | % | 240 | 210 | 180 | 170 | 170 | |
| Tensile stress M100 | ISO 37 | MPa | 4 | 5 | 5 | 5 | 5 | |
| Soft PVC | OO Hardness | - | A65 | A66 | A70 | A72 | A72 | |
| Tensile Strength | ISO 37 | MPa | 13 | 11 | 11 | 10 | 10 | |
| Elongation at break | ISO 37 | % | 800 | 600 | 550 | 430 | 400 | |
| Tensile stress M100 | ISO 37 | MPa | 3 | 4 | 4 | 5 | 5 | |
| Ester TPU | OO Hardness | - | A72 | A74 | A78 | A79 | A80 | |
| Tensile Strength | ISO 37 | MPa | 23 | 19 | 7 | 7 | 7 | |
| Elongation at break | ISO 37 | % | 2,000 | 1,200 | 800 | 650 | 600 | |
| Tensile stress M100 | ISO 37 | MPa | 4 | 4 | 4 | 3 | 3 | |
Note: The property values shown are typical values and are not guaranteed.

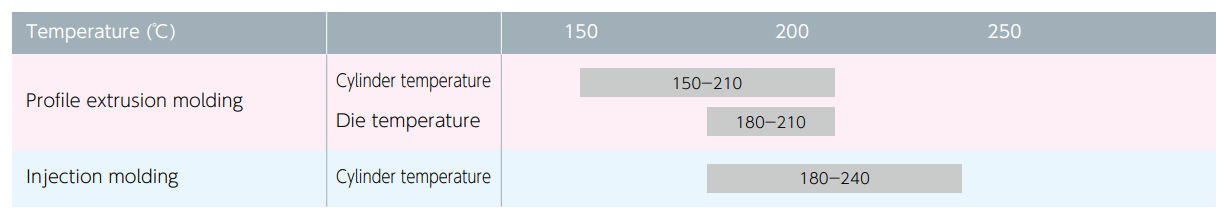

Molding conditions
*Drying conditions are 70°C x 4-6hr (unopened product). For opened products and unopened products that have been stored for a long time, 70°C x 10 hr.
*Please Contact Us for detailed molding conditions.
