Acrylic/ABS Multilayer Sheet

Lasting beauty for outdoor machinery.

Acrylic/ABS Multilayer Sheet is a PMMA/ABS multilayer sheet that combines Weatherability, impact resistance, and formability. Suitable for exterior applications of outdoor machinery.

Weatherability

Maintains a beautiful appearance even when used outdoors

By using PMMA with excellent Weatherability for the surface layer, fading and appearance deterioration are suppressed even in outdoor applications, and the beautiful appearance is maintained for a long period of time.

Impact resistance and formability

Strong and easy to realize the designed shape

Retains ABS-derived impact resistance and moldability. Supports vacuum molding and other processes to increase flexibility in exterior design.

Image: Impact resistance and moldability

Color variations

Responds to design by supporting color mixing

Supports a variety of color expressions including matte tones. The color can be toned according to the application and design concept, supporting the intent of the exterior design from the material selection stage.

Specification

Color tone: matte tone (bone white, black, gray)
Sheet thickness: 3.0, 5.0 (mm)　
Dimensions: 2200 × 1450 (mm)
Please feel free to Contact Us for color mixing support.

Acrylic/ABS Multilayer Sheet Physical Properties

Test Item		Standard		Measurement Remarks	Unit	Acrylic/ABS Multilayer Sheet
Test Item		ISO, UL	JIS	Measurement Remarks	Unit	Acrylic/ABS Multilayer Sheet
Mechanical Properties	Tensile Yield Stress	ISO 527 -1, -2	JIS K7161		MPa	38
	Tensile Breaking Stress				MPa	30
	Tensile Breaking Strain				%	40
	Tensile Modulus				MPa	2000
	Bending Yield Stress	ISO 178	JIS K7171	Tensile: PMMA surface	MPa	69
	Flexural Modulus	ISO 178	JIS K7171	Tensile: PMMA surface	MPa	2300
	Charpy Impact Strength	ISO 179	JIS K7111	Unnotched	kJ/m²	26
	Izod impact Test	―	JIS K7110	Notched	kJ/m²	9
	Rockwell Hardness	ISO 2039	JIS K7202-2		―	107 (R)
Thermal Properties	Deflection Temperature Under Load	ISO 75	JIS K7191-2	Method A, Tensile: PMMA surface	℃	89

Note: The property values shown are typical values and are not guaranteed.

Impact Resistance Data

Gardner Impact Test
Shooting type dimensions: 0.625 inch
Weight height: 1000 mm
Weight mass: 1800 g
Specimen size: 80 × 80 mm

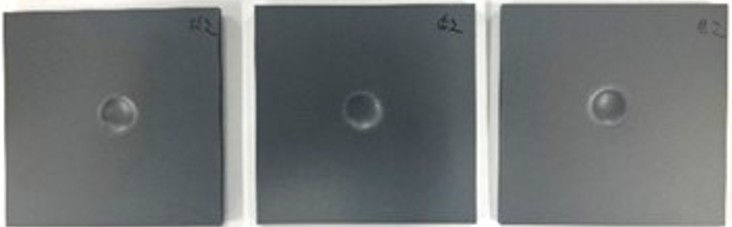

Acrylic/ABS Multilayer Sheet Striking surface

Photo: PARAFORMING™ ABSM2 - Gardner impact test strike surface

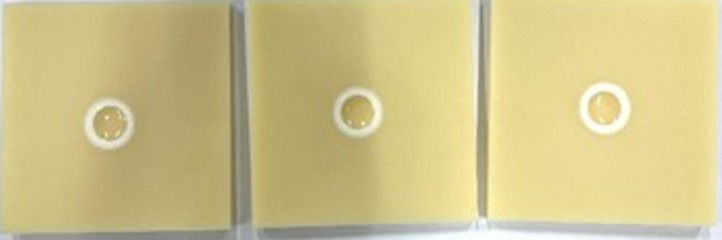

ABS single-layer sheet Striking surface

Photo: ABS single-layer sheet - Gardner impact test strike surface
